Cylinder Primitive

Beginner

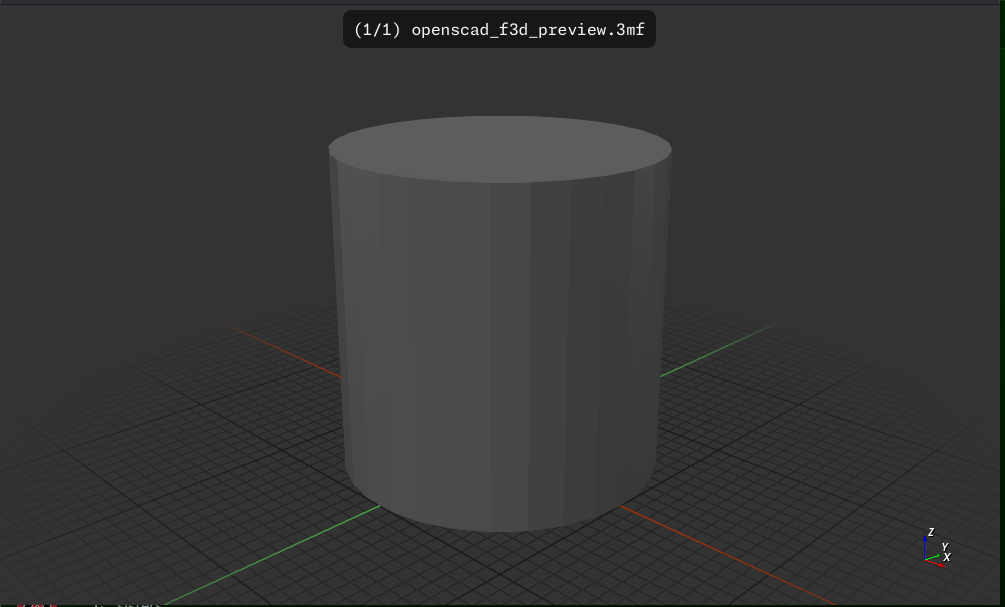

Uniform Cylinder

Usage

// h=height, r1=bottomRadius, r2=topRadius
cylinder(h, r1, r2, center = true/false);

Example

// All are equivalent; use one.
cylinder(h=20, r=10, center=true);
cylinder(  20,   10, 10,true);
cylinder(  20, d=20, center=true);
cylinder(  20,r1=10, d2=20, center=true);
cylinder(  20,r1=10, d2=2*10, center=true);

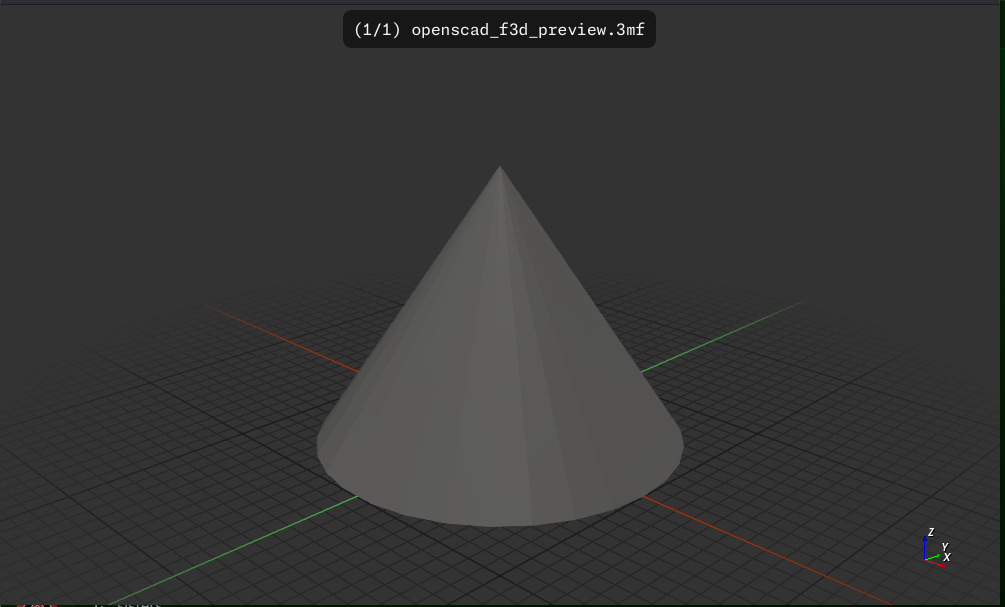

Cone

Usage

// h=height, r1=bottomRadius, r2=topRadius
cylinder(h, r1, r2, center = true/false);

Example

// All are equivalent; use one.
cylinder(h=15, r1=10, r2=0, center=true);
cylinder(  15,    10,    0,        true)
cylinder(h=15, d1=20, d2=0, center=true);
