Cube Primitive

Beginner

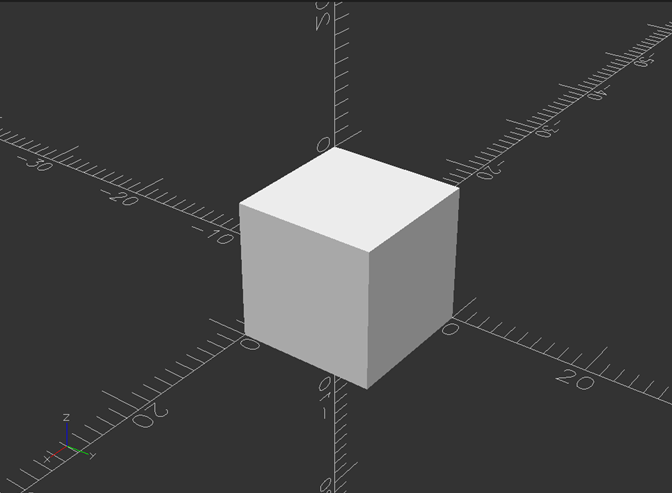

Simple Uniform Cube

Usage

cube(size = x);

Example

cube(10);

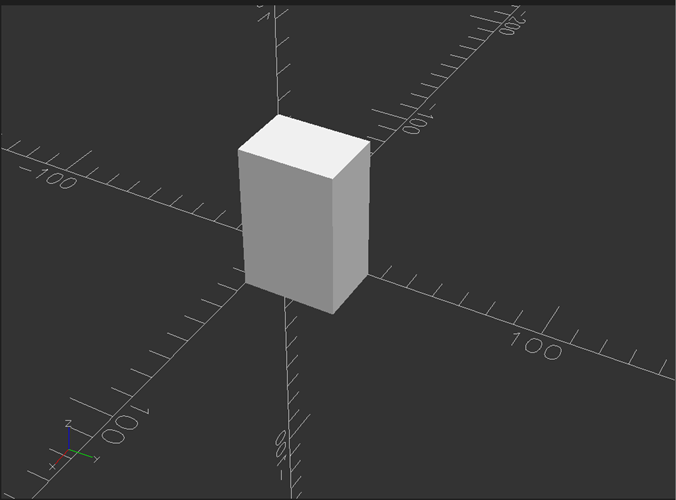

Non Uniform Cube

Usage

cube(size = [x,y,z]);

Example

cube([25,35,55]);

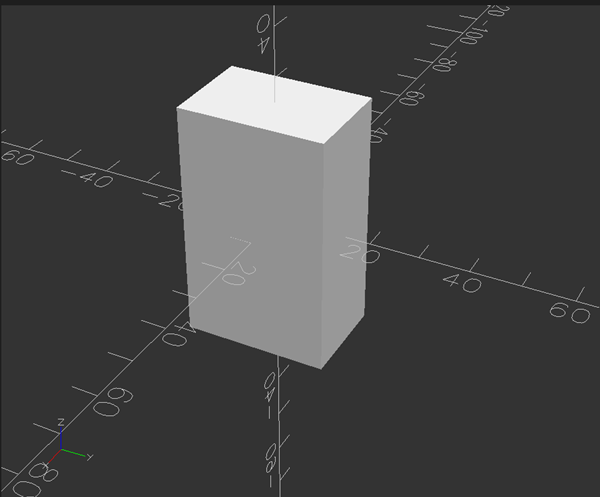

Centered Cube

Usage

cube([20,30,50],center=true);

Example

cube([20,30,50],center=true);

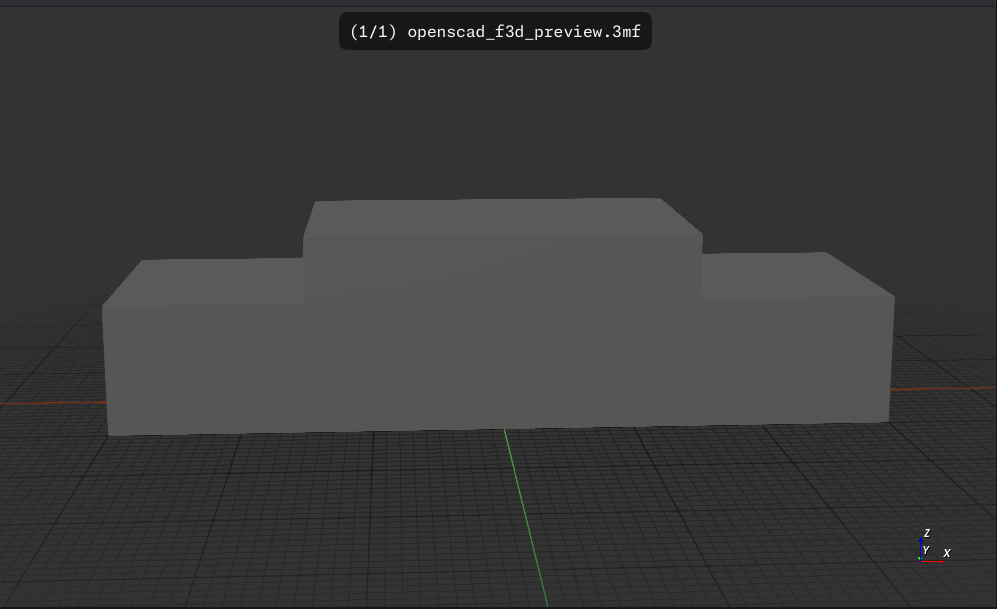

Two Cubes One Moved

Usage

    cube([x,y,z]);
    translate([x1,y1,z1])
    cube([x2,y2,z2])

Example

cube([60, 20, 10], center=true);
translate([0, 0, 5])
cube([30,20,10], center=true);
